Bedrooms:
3
actual,
4
possible
Baths:
2
full,
1
half
Floors:
2
Garage:
1
Foundations:
Walkout Basement
Master Location:
Main Floor
Laundry Location:
Main Floor
Fireplaces:
1
Chestnut Hill Alternate
Plan SL-583
Details
|
Basics
Style / Influences
Recreation/Vacation European Country Southern Craftsman
Kitchen Features
Open Layout
Snack
Island
Master Suite Features
Walk-in Closet Porch Shower Sitting Area Spa/Whirlpool Single Sink
Additional Features
Porch
Skylight(s)
Fireplace
Deck
|
Square Footage

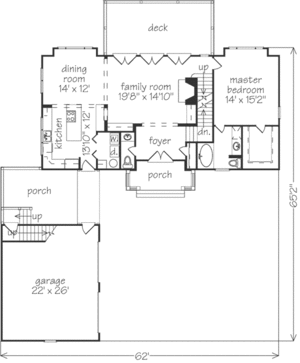

Main Floor:
1365
Upper Floor:
740
Total Heated Square Footage:
2105
Garage:
481
Dimensions
62 '- 0 " W x 64 '- 0 " D x 27 "- 0 " H
Plate Heights
Main Floor:
9.0
'
Upper Floor:
8.0
'
Construction
Ext. Wall Construction:
2x4
Roof Framing:
Gable
|
Description

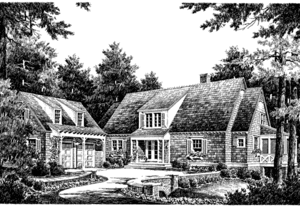

Designed by architect V. John Tee of Atlanta. Three sets of French doors open onto the rear deck. The master bedroom features a large walk-in closet and bath. A cooktop island in the kitchen serves as a wonderful area for preparing gourmet meals. Upstairs, a loft provides additional space for an office or sitting area. A bonus room is located above the garage.
Plan Packages
Reproducible + 1 set
Best for construction / customization. (Includes one free blueprint)
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Construction Set - 8 Sets
Eight full sets of construction drawings.
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Planning Set
Recommended for review/study only. Stamped "Not For Construction". Includes all exterior elevations and floor plans. Purchase price will be applied to any upgrade order for the same plan, based on availability (8 sets, CAD or Reproducible)
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
